Your pool water’s cloudy and you’re wondering if the filter’s the problem—or if you bought the wrong one. Pick wrong and you’ll overspend, fight extra backwashing, or breathe DE dust; match the filter to pool type, pump flow, and maintenance tolerance, and the choice sorts itself out.

Quick answer

Three pool filter types exist: sand, cartridge, and DE (diatomaceous earth). Choose sand for lowest cost and lowest maintenance on pools under 30,000 gal. Choose cartridge for moderate filtration (10-15 microns) with zero backwash waste. Choose DE for the clearest water (2-5 microns) on inground pools that can handle monthly powder recharges. Match the filter to pool size and pump flow—wrong sizing causes cloudy pool water more often than wrong chemistry.

What this is not

Before you spend money, clear up four misconceptions that cost real cash:

What this is not: a filter does not replace chlorine

A filter removes physical debris—leaves, dust, dead algae, skin cells. It does NOT kill bacteria or viruses. Free chlorine sanitizes; the filter only clears what chlorine has killed. A brand-new filter with zero chlorine still lets your pool go green in days. Read how to test your pool water before sizing any filter.

What this is not: a bigger filter is not always better

A filter must match the pump’s flow rate (GPM). Oversized filters restrict flow and strain the pump; undersized ones short-cycle and overload the media.

What this is not: sand is not play sand

Pool filter sand is graded #20 silica (.45-.55 mm). Play sand is much finer (.1-.3 mm) and channels and clogs within weeks. Never substitute.

What this is not: DE is not the same as chlorine shock

Diatomaceous earth is fossilized algae skeletons used as filter media—zero sanitizing effect. Cal-hypo, dichlor, and MPS are chlorine or non-chlorine shocks and live on the pool shock page. Don’t confuse DE powder with shock powder.

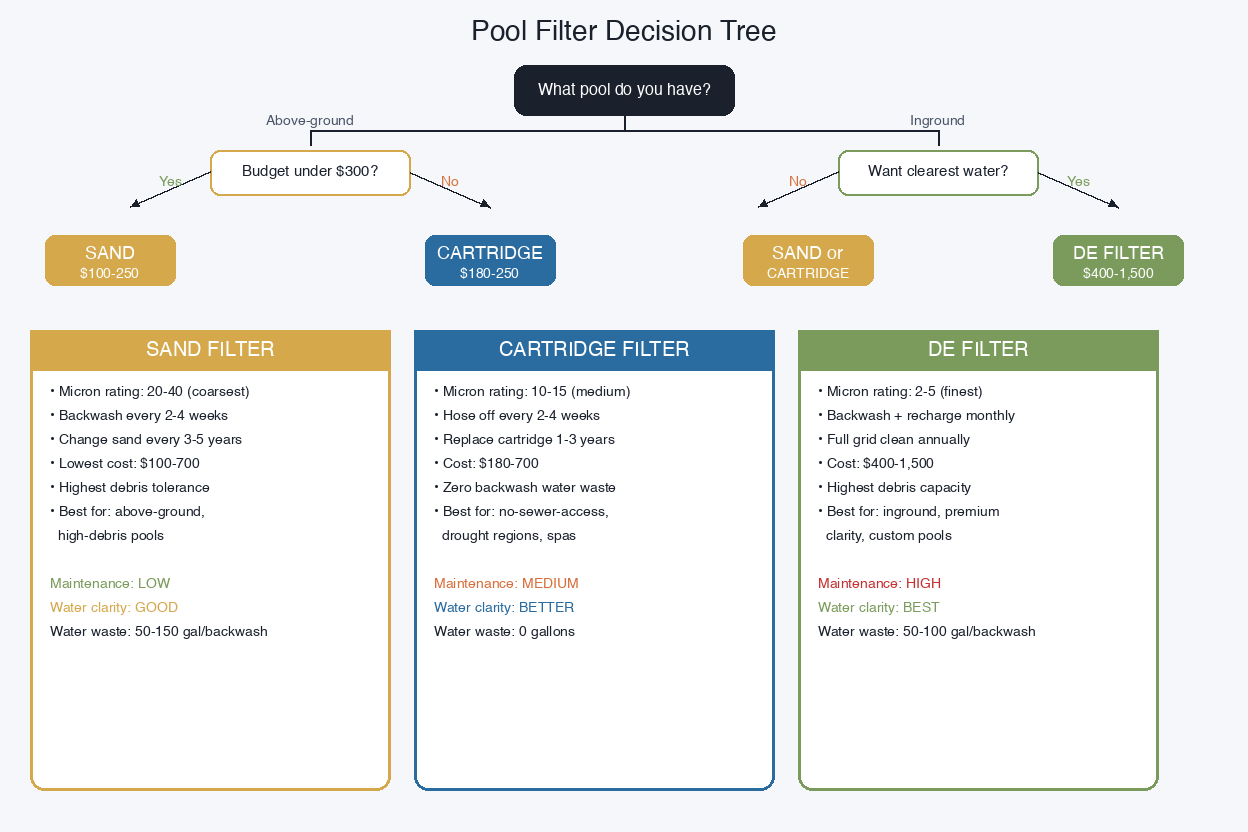

Decision tree: which pool filter fits your pool

The right filter depends on three questions, in order: above-ground or inground? How much maintenance will you do? What’s your budget for filter and media? Work the branches below—first-year pool owner? Start at Branch 1.

Filter type selector at a glance

Sand filter tank, cartridge filter canister, and DE filter tank side by side on a pool equipment pad

Branch 1: Above-ground pool under 15,000 gallons, tight budget

Pick: sand filter pump combo. The Intex Krystal Clear 2100 GPH sand filter ($175) and step-up VEVOR 12-inch 3000 GPH ($110) both fit. Sand is forgiving, cheap to refill ($30 per 50 lb every 3-5 years), and handles small water volume without backwash hassle.

Branch 2: Above-ground pool, you hate backwashing

Pick: cartridge filter. The VEVOR 50 sq ft cartridge tank ($184) or Swimline Hydrotools ($200) pull out 10-15 micron debris with no backwash—pull the cartridge, hose it off, drop it back in.

Branch 3: Inground pool, you want lowest maintenance

Pick: sand filter, inground size. The Hayward ProSeries 24-inch top-mount ($689) is the industry standard—sand lasts 5-7 years, backwash takes 3 minutes, tank runs 15+ years.

Branch 4: Inground pool, you want the clearest water

Pick: DE filter. DE filters down to 2-5 microns—visibly clearer than sand (20-40) or cartridge (10-15). Pair the tank with Leslie’s 24 lb DE powder ($42), recharged every 4-6 weeks. Trade-off: DE powder is a confirmed lung irritant—see Safety notes below; not for owners who skip the N95.

Branch 5: Spa, hot tub, or small water feature

Pick: cartridge filter. Small footprint, no backwash plumbing, easy cartridge swaps—sand and DE don’t scale down to spa volumes.

Branch 6: Saltwater pool (chlorine generator installed)

Pick: cartridge (preferred) or sand. Both work. Salt cells generate chlorine; the filter still clears debris. Avoid DE on saltwater unless you’re already a DE owner—the recharge cadence adds work on top of cell cleaning.

Pool filter sizing chart: match tank size to pool gallons and pump GPM

No brand name fixes a sizing mistake—the tank has to match pool and pump.

How to size a filter (turnover math)

Start with pool volume—the chemical dose calculator estimates it. Divide gallons by 8, then by 60: a 15,000-gallon pool needs about 31 GPM to turn over once in 8 hours. Match the filter’s max flow rating to your pump’s rated GPM.

Sand filter sizing chart (tank size to pool gallons)

Sand tankCovers pools up to
12 in~9,000-15,000 gal (2,100-3,000 GPH pumps)
16 in15,000-20,000 gal (~4,000 GPH)
19-22 in20,000-25,000 gal (size to your pump’s GPM)
24-27 in25,000-30,000+ gal (inground standard)

Mid-size bands interpolate between the published rows—when in doubt, size up. Sand per tank: 50 lb (12-inch), two bags (16-inch), about 300 lb (24-inch inground).

Cartridge and DE sizing chart (filter area to pool gallons)

Filter areaCovers pools
50 sq ft cartridge~10,000-15,000 gal (above-ground and small inground)
100-250 sq ft cartridge~20,000-35,000 gal (mid-size inground band)
420-425 sq ft cartridge40,000-90,000 gal (large inground)
DE grids 24-60 sq ftdose by area: 1 lb DE per 10 sq ft per recharge

Cartridge rows interpolate between the published 50 and 425 sq ft endpoints. DE follows grid area: 24, 36, and 60 sq ft grids take 2.4, 3.6, and 6 lb per recharge.

Sand filter deep dive: how it works, pros, cons

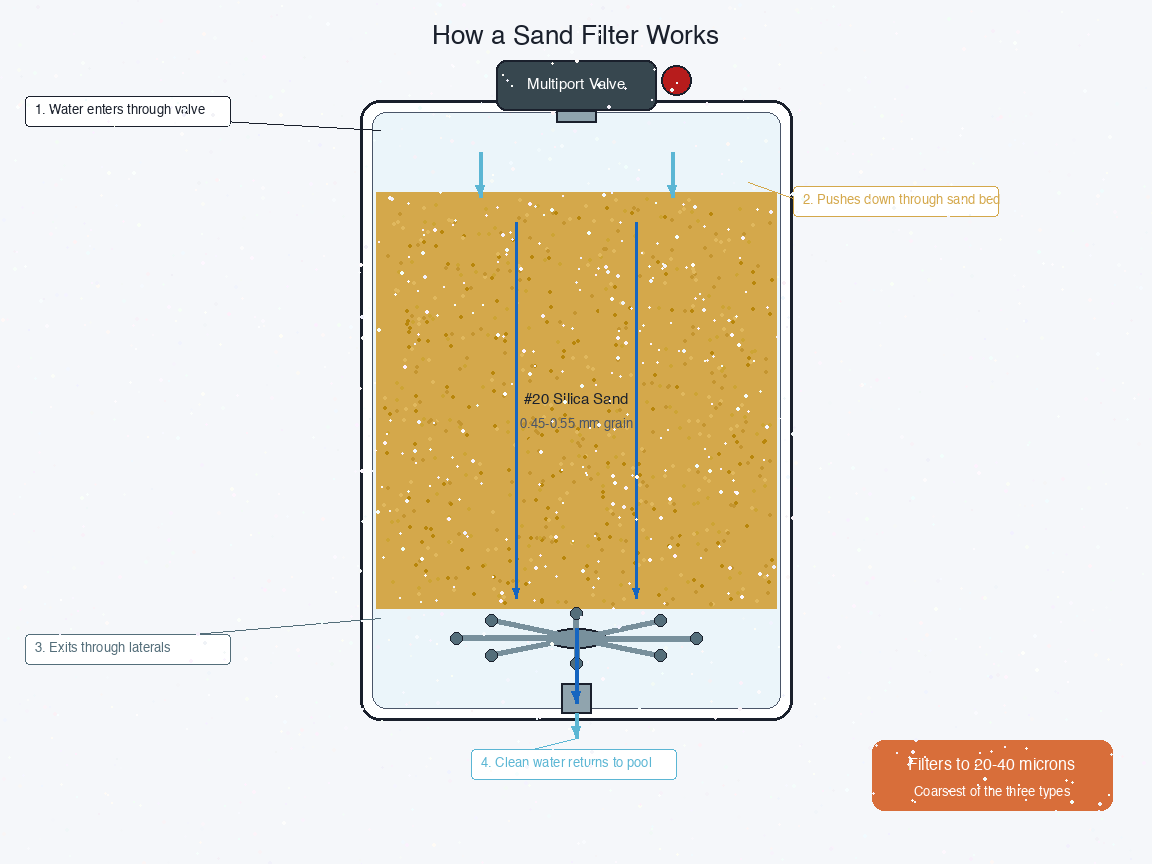

How a sand filter works

Water enters the top, pushes down through a bed of #20 silica sand (.45-.55 mm grains), and exits through laterals at the bottom. The bed traps particles 20-40 microns and larger. Every few weeks, reverse the flow (“backwash”) for 2-3 minutes to flush debris out the waste port.

Open pool sand filter tank showing the bed of pale tan silica sand during a media change

Sand filter pros

  • Lowest upfront cost of the three types
  • Long media life—change sand every 3-5 years
  • Tolerates heavy debris without performance loss
  • Simplest maintenance—backwash 3 minutes, done
  • Hard to damage—no delicate grids or cartridges

Sand filter cons

  • Coarsest filtration of the three (20-40 microns vs cartridge 10-15 vs DE 2-5)
  • Needs backwash plumbing and waste water (50-150 gal per backwash)
  • Heavier—sand tanks run 200-400 lb when full
  • Channeling risk after 4-5 years (water finds paths around clumped sand)

Sand filter best for

Above-ground pools, budget inground builds, high-debris pools, and set-and-forget owners. Stock up on Aqua Joe 50 lb filter sand ($30) or step up to US Silica Mystic White II ($35) for longer bed life. Cleaning steps: how to clean a pool filter.

Cartridge filter deep dive: how it works, pros, cons

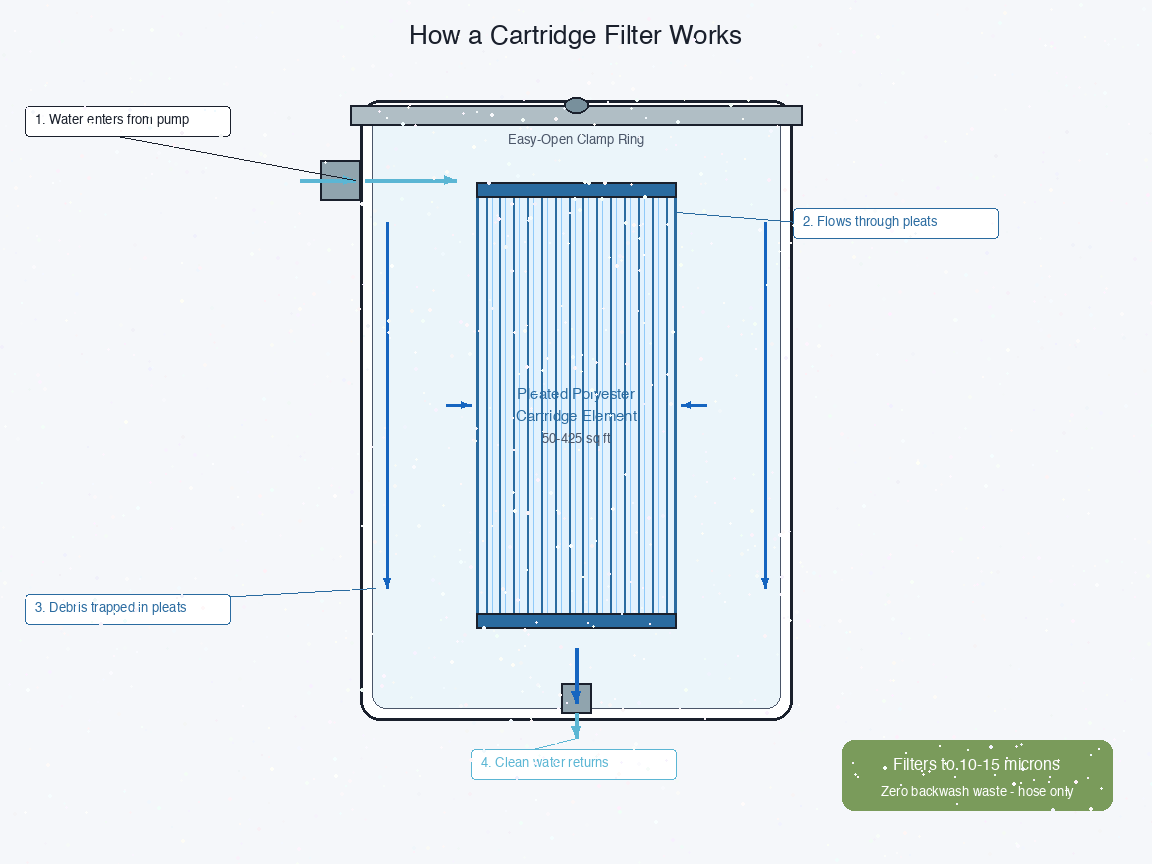

How a cartridge filter works

Water flows through a pleated polyester cartridge (50-425 sq ft of surface area), trapping debris 10-15 microns and larger in the pleats. No backwash—when pressure climbs 8-10 psi above baseline, pull the cartridge and hose it off. Every 3-6 months, soak it in cleaning solution to strip oils and scale.

Pleated polyester pool cartridge filter element being rinsed clean with a garden hose spray

Cartridge filter pros

  • Finer filtration than sand (10-15 microns vs 20-40)
  • Zero backwash waste—saves 1,000+ gallons of water per season
  • Lower pump pressure means lower electricity cost
  • Easiest cleaning—pull, hose, done
  • Works without waste plumbing (no sewer access needed)

Cartridge filter cons

  • Higher replacement cost—cartridges run $30-200 each, replaced every 1-3 years
  • Less tolerant of heavy debris (leaves clog pleats fast)
  • Manual cleaning—no automated backwash cycle
  • Scale and oil buildup requires quarterly acid soaks

Cartridge filter best for

Above-ground owners who want better-than-sand clarity without backwash; inground pools without sewer access; water-conscious owners; spas. For inground pools in the 20,000-25,000 gal range, the Hayward StarClear Plus cartridge filter ($879) is the branded step-up from no-name imports. Large pools 40,000-90,000 gal: step up to the 425 sq ft XtremepowerUS 4-element ($700). When cartridges wear out (every 1-3 years), a POOLPURE CCP420 4-pack ($170) drops in for Pentair Clean and Clear Plus 420 tanks. Cleaning steps: how to clean a pool filter.

DE filter deep dive: how it works, pros, cons

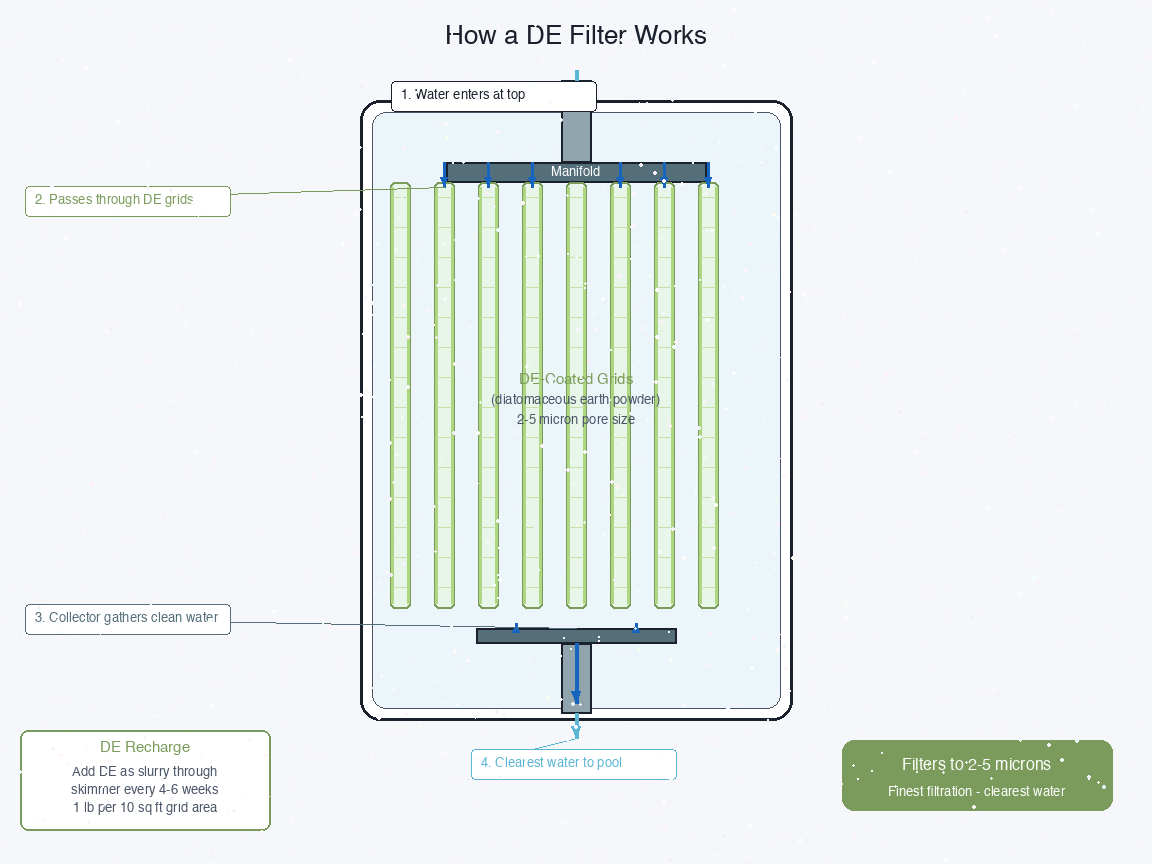

How a DE filter works

Inside a DE tank, 4-8 curved grids hold a thin layer of diatomaceous earth (fossilized algae skeletons, 2-5 micron pores) that traps particles as small as 2-5 microns—bacteria and fine pollen. Every 4-6 weeks, backwash the spent DE and recharge (about 1 lb per 10 sq ft of grid area).

DE filter pros

  • Finest filtration of the three (2-5 microns—visibly clearer water)
  • Highest debris capacity per cleaning cycle
  • Preferred for inground pools where owners want sparkle
  • Reduces sanitizer demand (clears dead algae, less chlorine needed)

DE filter cons

  • Highest maintenance—monthly backwash plus recharge, annual full grid clean
  • DE powder is a confirmed lung irritant (crystalline silica risk)—N95 mask mandatory
  • Highest cost—tanks $400-1,500, grids $120-300 every 3-5 years, powder $30-65 per bag
  • DE disposal is restricted in some areas (California, parts of Australia)
  • Sensitive to low pH—acidic water etches the grids faster
  • Sensitive to total alkalinity swings—unstable TA scales the DE bed

DE filter best for

Inground pools where clarity is the priority (custom builds, glass-tile finishes); chronic-cloudiness pools sand and cartridge can’t crack; owners who don’t mind the work. Use Leslie’s 24 lb DE powder ($42) or the smaller HTH 10 lb DE aid ($30) for trial runs. When grids tear or scale beyond acid-wash recovery, swap in the POOLPURE FS-2005 60 sq ft replacement grid set ($166) for Pentair FNS Plus 60, Jandy DEL60, or Hayward Pro-Grid DE6020. Dosage math: chemical dose calculator. Cleaning steps: how to clean a pool filter.

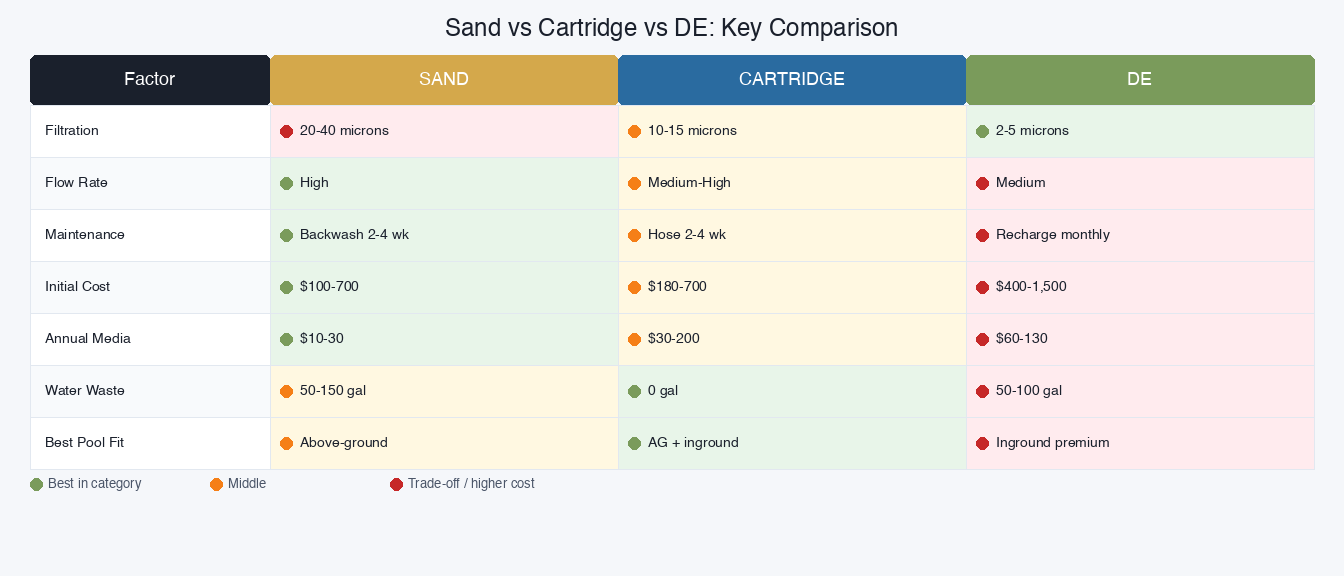

Sand vs cartridge vs DE: comparison table

Quick comparison chart

Pool filter media on a workbench: a pile of silica sand, a pleated cartridge element, and white DE filter grids
FactorSandCartridgeDE
Filtration (microns)20-40 (coarsest)10-15 (medium)2-5 (finest)
Flow rate (GPM)High (best for big pumps)Medium-HighMedium
Maintenance frequencyBackwash 2-4 weeksHose 2-4 weeks, soak quarterlyBackwash+recharge 4-6 weeks, full clean annually
Initial cost (tank and pump)$100-700$180-700$400-1,500
Annual media cost$10-30 (sand 3-5 yr)$30-200 (cartridge 1-3 yr)$60-130 (DE powder and grids)
Debris capacityHigh (bed depth)Medium (pleat count)Highest per recharge
Water waste per clean50-150 gal (backwash)0 gal (hose off only)50-100 gal (backwash)
Best pool fitAbove-ground, high debrisAbove-ground and inground midInground premium clarity

Pool filter cost comparison: upfront price vs 5-year running cost

The sticker is only the first bill—media, cartridges or grids, and backwash water keep billing, and an undersized filter hides cost in cloudy pool treatments.

Upfront cost by filter type (tank and install)

TypeTypical upfront
Sand$110-689 (VEVOR 12-in $110 to Hayward 24-in $689)
Cartridge$184-879 (VEVOR 50 sq ft $184 to Hayward StarClear Plus $879)
DE$400-1,500 (tank only; powder and grids bill separately)

The 5-year running cost table

TypeMedia over 5 yearsWater lost per year
Sand$50-150 ($10-30/yr × 5)650-3,900 gal backwash
Cartridge$60-800 (2-4 replacements × $30-200)0 gal—hose off only
DE$420-950 ($60-130/yr × 5 + one $120-300 grid set)450-1,300 gal backwash

Real pools: a 15,000-gallon above-ground sand setup = $110-200 tank + 1-2 media changes (two 50-lb bags at $30-35) = $170-340 over five years. Same pool on cartridge: $184 tank + 2-3 cartridges = $244-784. A 30,000-gallon inground DE build: $400-1,500 tank + $300-650 powder + $120-300 grids = $820-2,450. A $42 Leslie’s 24 lb bag covers four 60 sq ft recharges (24 lb ÷ 6 lb).

What you’ll need

Installing or upgrading takes:

  • The filter itself—sand, cartridge, or DE per the decision tree above
  • Filter media—#20 silica sand (50 lb fills a 12-inch tank; two bags for 16-inch); DE powder (1 lb per 10 sq ft of grid area); nothing extra for cartridge
  • Pump matched to filter flow—sand needs high GPM; cartridge and DE accept lower flow
  • Plumbing fittings—1.5- or 2-inch PVC unions, multiport valve (sand/DE) or clamp ring (cartridge)
  • Pressure gauge—a 0-60 PSI unit, so you know when backwash or cleaning is due
  • For sand filter upgrades: a PioneerWorks 16-inch 1 HP sand filter ($199.99) covers above-ground pools to 20,000 gal and pairs well with most 1-1.5 HP pumps

What to buy only if needed

Only if your current sand is 4+ years old

Replace with #20 silica—one Aqua Joe 50 lb bag covers a 12-16 inch tank; US Silica Mystic White II for premium angularity.

Only if your DE grids are torn or calcium-clogged beyond acid wash

Drop in the POOLPURE FS-2005 replacement grid set—half the cost of OEM Pentair grids.

Only if your cartridge is 1-2 years old and losing bounce

Try a deep chemical soak first; if pressure still won’t drop, swap in a POOLPURE CCP420 4-pack.

Safety notes: DE powder handling and cartridge cleaning

Two real hazards here—take both seriously.

DE powder handling safety

Pool-grade DE powder contains crystalline silica; long-term inhalation causes silicosis, an irreversible lung disease. Always wear an N95 mask and nitrile gloves when measuring, mixing, or applying DE. Pour slowly into a slurry bucket—never toss dry powder into the skimmer. Avoid breathing any visible dust. Store DE powder sealed and away from children and pets—the bag looks like flour or pet food. Food-grade DE (pest control) is a different product with lower crystalline silica—don’t substitute it, and never use filter-grade DE for food, pets, or gardens.

Cartridge cleaning uses muriatic acid

Quarterly cartridge soaks use diluted muriatic acid or a commercial cleaner. Muriatic acid is a strong chemical hazard: add acid to water, never the reverse; wear gloves and eye protection; work outdoors; never mix acid with chlorine—the gas causes severe respiratory damage. See muriatic acid safety basics for PPE and dilution guidance.

Common mistakes

  1. Sizing the filter to pool volume, not pump flow rate. A 100 GPM pump paired with a 50 sq ft cartridge will short-cycle. Check the filter’s rated GPM against your pump curve, not just pool gallons.
  2. Substituting play sand for #20 silica pool sand. Play sand (.1-.3 mm) channels and clogs within weeks. Only #20 grade (.45-.55 mm) works.
  3. Skipping the N95 when applying DE powder. Crystalline silica in pool-grade DE causes silicosis with repeated exposure. The $3 mask is non-negotiable.
  4. Backwashing a sand filter too often. A dirty sand bed filters better than a clean one—particles trap particles. Wait for pressure to rise 8-10 psi above baseline, not a fixed weekly schedule.
  5. Forgetting that low total alkalinity scales up filter media. Unstable TA causes pH bounce, which precipitates calcium onto pleats and grids. Fix the chemistry before replacing a “clogged” filter—the filter is the symptom.

When to call a pro

When the filter tank itself is leaking

Cracked sand tanks or split cartridge bodies need professional replacement—DIY epoxy fixes rarely hold under 20+ PSI. A tech’s tank swap runs $200-500 labor plus the new tank.

When pressure won’t drop after backwash or cleaning

If pressure stays 10+ PSI above baseline after a proper backwash or hose-off, the media is channeled, scaled, or the multiport valve is failing. A tech can acid-wash grids, deep-clean cartridges, or diagnose valve issues.

When you’re switching filter types entirely

Converting between filter types requires plumbing changes, pump flow verification, and often a new pad—worth the $300-600 install fee to avoid leaks.

Key takeaways

  • Three types: sand (20-40 microns, cheapest, lowest maintenance), cartridge (10-15 microns, no backwash waste), DE (2-5 microns, clearest water, most upkeep).
  • Size to your pump flow rate, not just pool gallons.
  • Use only #20 silica pool sand (.45-.55 mm) in sand filters—play sand clogs.
  • DE powder is a lung hazard—N95 and gloves mandatory; never substitute food-grade DE.
  • Backwash sand only when pressure climbs 8-10 PSI above baseline—over-backwashing hurts filtration.
  • All three work in chlorine and saltwater pools—salt cells don’t change the choice.
  • How to clean a pool filter has the maintenance steps once you’ve chosen.

Frequently Asked Questions

What is the best type of pool filter for an above-ground pool?

For most above-ground pools under 15,000 gallons, a sand filter pump combo (Intex 2100 GPH or VEVOR 12-inch) is the best value—cheap, simple, lasts 3-5 years between sand changes. Step up to a cartridge filter (VEVOR 50 sq ft) for finer filtration (10-15 microns vs 20-40) and zero backwash waste. Skip DE for above-ground—the precision is overkill and DE powder handling adds work.

How often should I change the sand in my pool filter?

Every 3-5 seasons (or 5-7 years with light use). Sand loses angularity over time—rounded grains channel water instead of filtering it. Signs it's time: pressure won't drop after backwash, pool gets cloudy despite normal chemistry, sand is gray or clumps. Use #20 silica (.45-.55 mm) only. A 16-inch tank needs about 100 lb (two 50-lb bags); a 24-inch inground tank needs about 300 lb.

Is a DE pool filter worth the extra maintenance?

A DE filter is worth it if you have an inground pool, want the clearest possible water (2-5 micron filtration), and accept monthly backwash plus recharge plus annual full clean. DE filters out particulates sand and cartridge miss, which matters for pools with heavy bather load or visible cloudiness. Skip DE if your budget is tight or you can't safely handle DE powder (lung irritant—N95 required).
